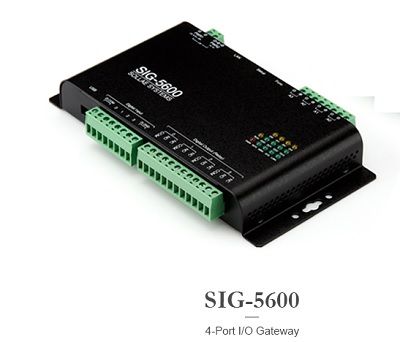

SIG5600: IoT GATEWAY ETHERNET/WIFI 4AI 4DI 4DO
SIG5600
Descripción
SIG-5600 is a remote I/O gateway equipped with 4 analog input ports, 4 digital input ports, 4 digital output ports, an Ethernet, and a WiFi interface. The device can collect data from various analog sensors, monitor and control the states of equipment from remote data centers or HMI devices via Modbus TCP protocol. The device can also be monitored and controlled by any Modbus TCP software/app, such as ModMap.----Each individual analog port has three selectable measured modes: voltage (0 ~ 5V), current (4~20mA), and current (0 ~ 20mA). This makes a single SIG-5600 able to work with many kinds of analog sensors.-----Each individual digital input port also has a counter function. This makes it able to not only monitor ON/OFF state but also count either falling or rising events.-----Each individual digital output port has a relay with both NO (Normal Open) and NC (Normal Closed) mode. Apart from ON/OFF control, each digital output can also generate a pulse when receiving a specific Modbus TCP request from a remote device, software, or smartphone app.-----With both Ethernet and WiFi interfaces, SIG-5600 can connect to the Internet, either wired or wirelessly.-----The SIG-5600 supports up to four TCP connections simultaneously, enabling to monitor sensors from different HMI / software / apps at the same time.----Features4 analog input ports: voltage or current4 digital input ports: Wet contact or Dry contact input4 digital output ports (Relay): both NO and NC outputSupport pulse mode on digital output portsSupport counter function on digital input portsSupport Modbus/TCPSupport multiple TCP connections (Max. 4 channels)Support a master mode for the Internet SwitchSupport a 1-bit ADC function for the Internet SwitchFree Modbus/TCP programIndustrial temperature range (-40? ~ +85?)---Plazo standar: 3 semanas... Datasheet SIG5600
Garantía
La garantia minima de 2 años. Algunos equipos ( móduols ópticos y conversores ) tienen 5 años de garantia.
La garantia no cubre el uso indebido del equipamiento,..
La maxima responsabilidad de Astelo será el precio pagado por el cliente
