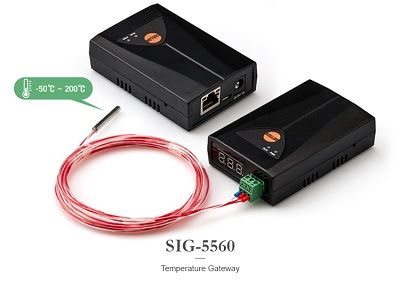

SIG5560: IoT GATEWAY TEMPERATURE SENSOR
SIG5560
Descripción
SIG-5560 is a temperature gateway that reads the temperature value from a resistance temperature detector PT100 and sends it network using Modbus TCP protocol. Users can remotely read the temperature by using any kinds of Modbus Software/Apps or HMI devices.---Furthermore, users can config thresholds to make it triggers another Modbus TCP device that has digital output ports. This is called Internet Switch.---Especially, we provide a free software and a smartphone app, called ModMap, which can connect to devices read the temperature.--Features--PT100 connection port: support 3-wire PT100 sensorsDisplay: a red 3-digit 7-segment LEDProtocol: Modbus/TCPStoring the lowest and the highest temperatureSupport multiple TCP connection (Max. 4 channels)Support a 1-bit ADC function for the Internet SwitchMeasurement Error: within ±0.3? (±0.54?)Maximum Measurement Range: -200? ~ 850? (-328? ~ 1562?)Device operation temperature range (Industrial: -40? ~ +85?)----NOTE: SIG-5560 device supports the PT100 sensors that has the measurement range of -200? ~ 850? (-328? ~ 1562?). But the measurement range depends on the PT100 sensor. We provide a PT100 sensor that has the measurement range of -50? ~ +200? as an option. If users need a larger range, use another PT100 sensor.Plazo standar: 3 semanas... Datasheet SIG5560
Garantía
La garantia minima de 2 años. Algunos equipos ( móduols ópticos y conversores ) tienen 5 años de garantia.
La garantia no cubre el uso indebido del equipamiento,..
La maxima responsabilidad de Astelo será el precio pagado por el cliente
